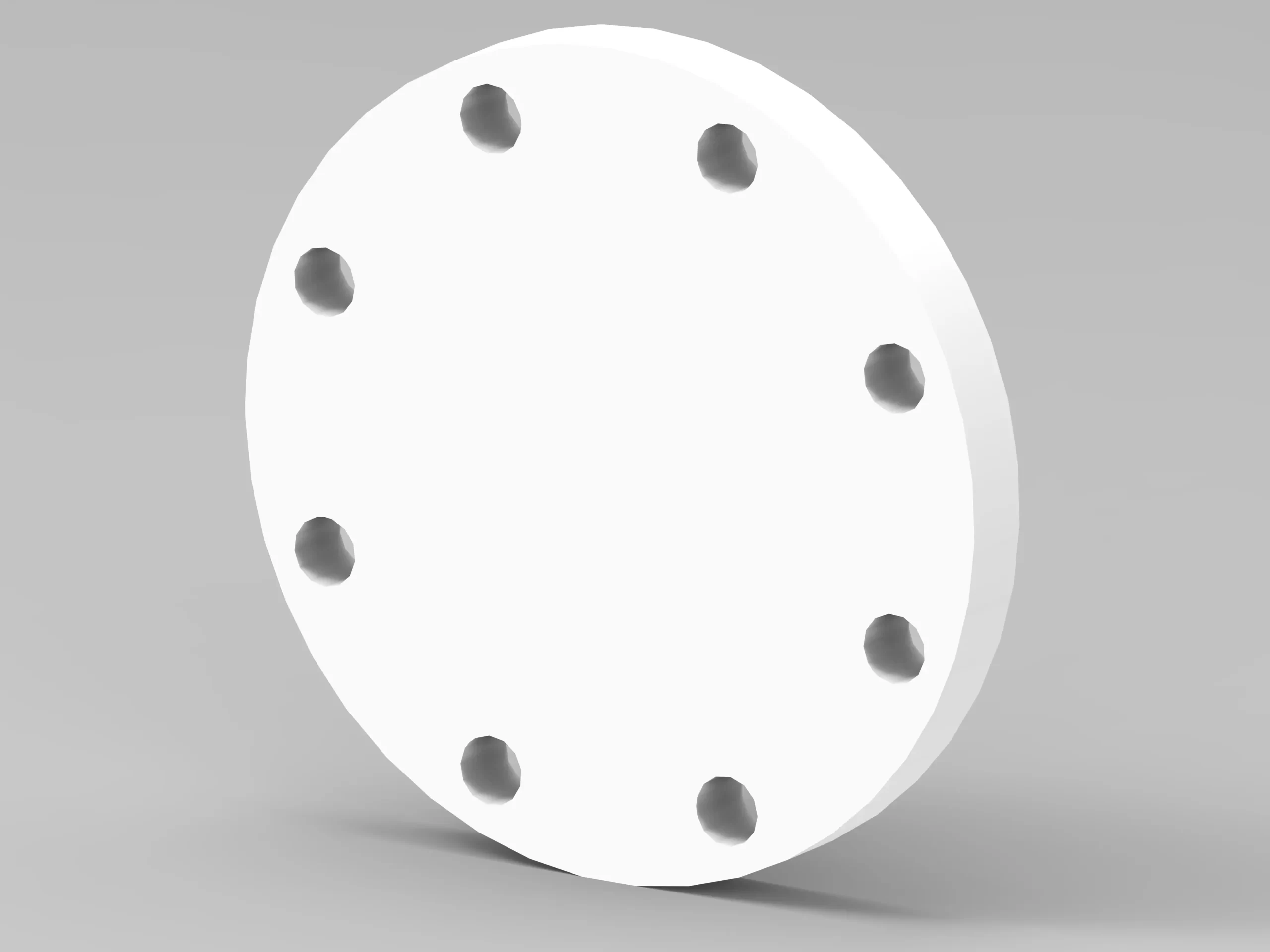

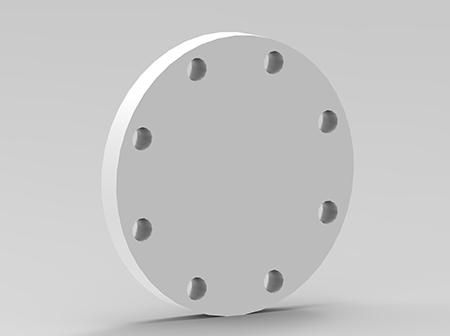

PVDF Blind Flange


DATA SHEET FOR PVDF Blind Flange

Dimensions for PVDF Blind Flange

PPH-Blind
SIZE D

(mm)

 T

(mm)

 PCD
INCH MM BS 10 table ‘f’ Asa #150
PCD Dia

Of

Hole

 No.

of

Hole

 PCD Dia

Of

Hole

 No.

of

Hole
½” 20 93 14 67 14 4 60 14 4
¾” 25 105 16 73 14 4 70 14 4
1” 32 121 18 87 14 4 79 14 4
1 ¼” 40 131 18 98 14 4 89 14 4
1 ½” 50 141 20 105 15 4 98 15 4
2” 63 164 20 127 17 4 120 17 4
2 ½” 75 183 20 145 17 4 140 17 4
3” 90 199 22 165 17 8 152 17 4
4” 110 227 22 191 17 8 191 17 8
6” 160 303 25 260 18 12 241 18 8
