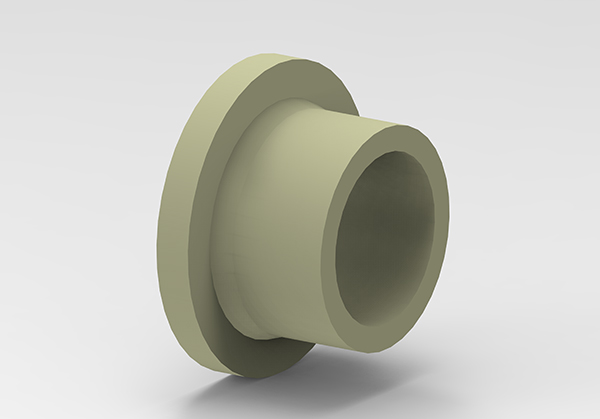

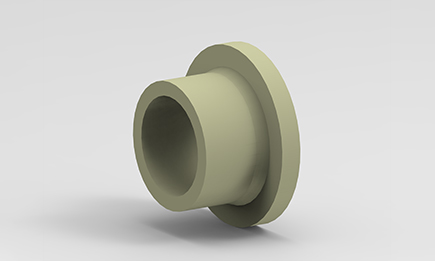

PPH Long Neck Pipe End


DATA SHEET FOR PPH Long Neck Pipe End

Dimensions for PPH Long Neck Pipe End

pph_long_neck
LONG NECK
SIZE D

(mm)

 D1

(mm)

 D2

(mm)

 D3

(mm)

 T

(mm)

 T1

(mm)
INCH MM
½” 20 50 20 14 25 34 10
¾” 25 56 25 18 29 36 10
1” 32 64 32 23 37 46 13
1 ¼” 40 71 40 30 45 47 11
1 ½” 50 80 50 37 57 47 13
2” 63 94 63 45 68 48 14
2 ½” 75 106 75 52 82 50 12
3” 90 126 90 71 97 83 16
4” 110 154 110 85 117 79 18
6” 160 211 160 128 168 80 25
