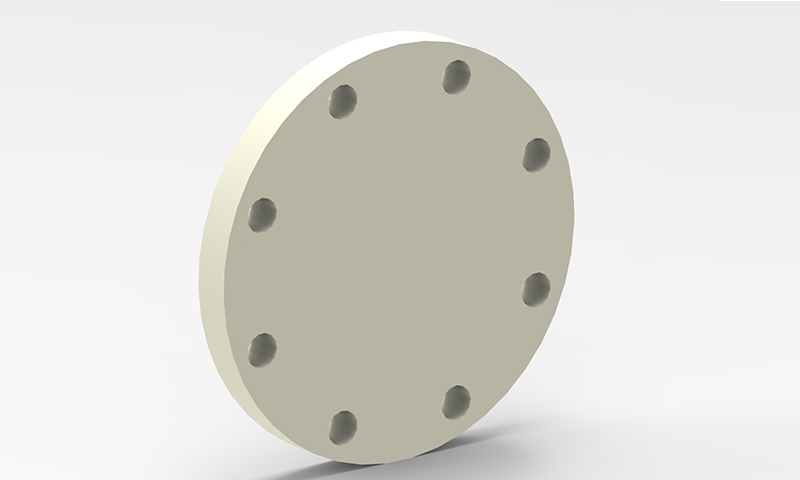

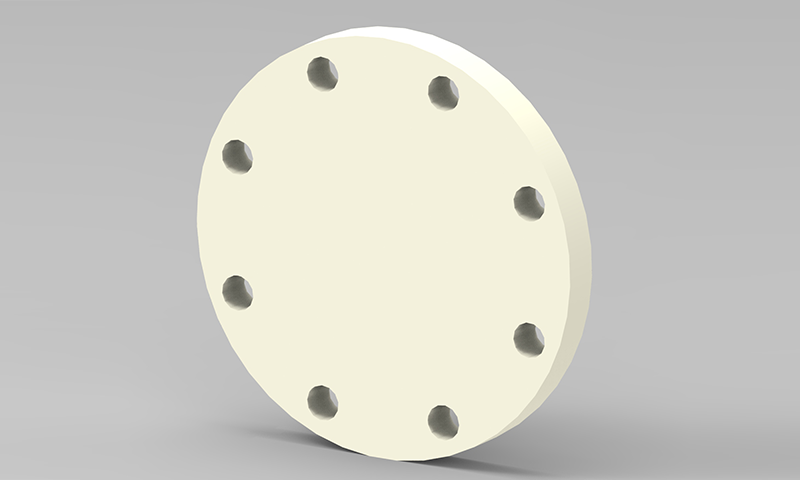

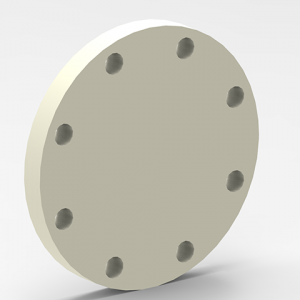

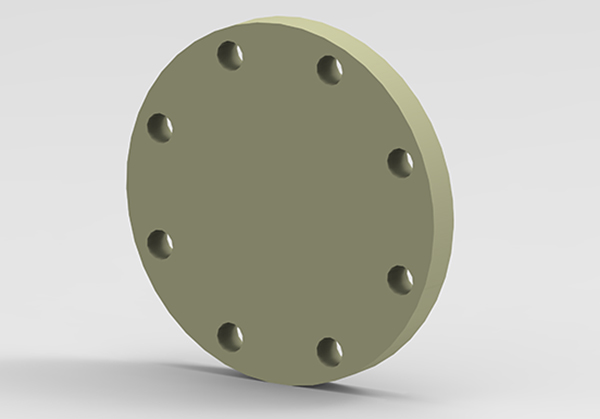

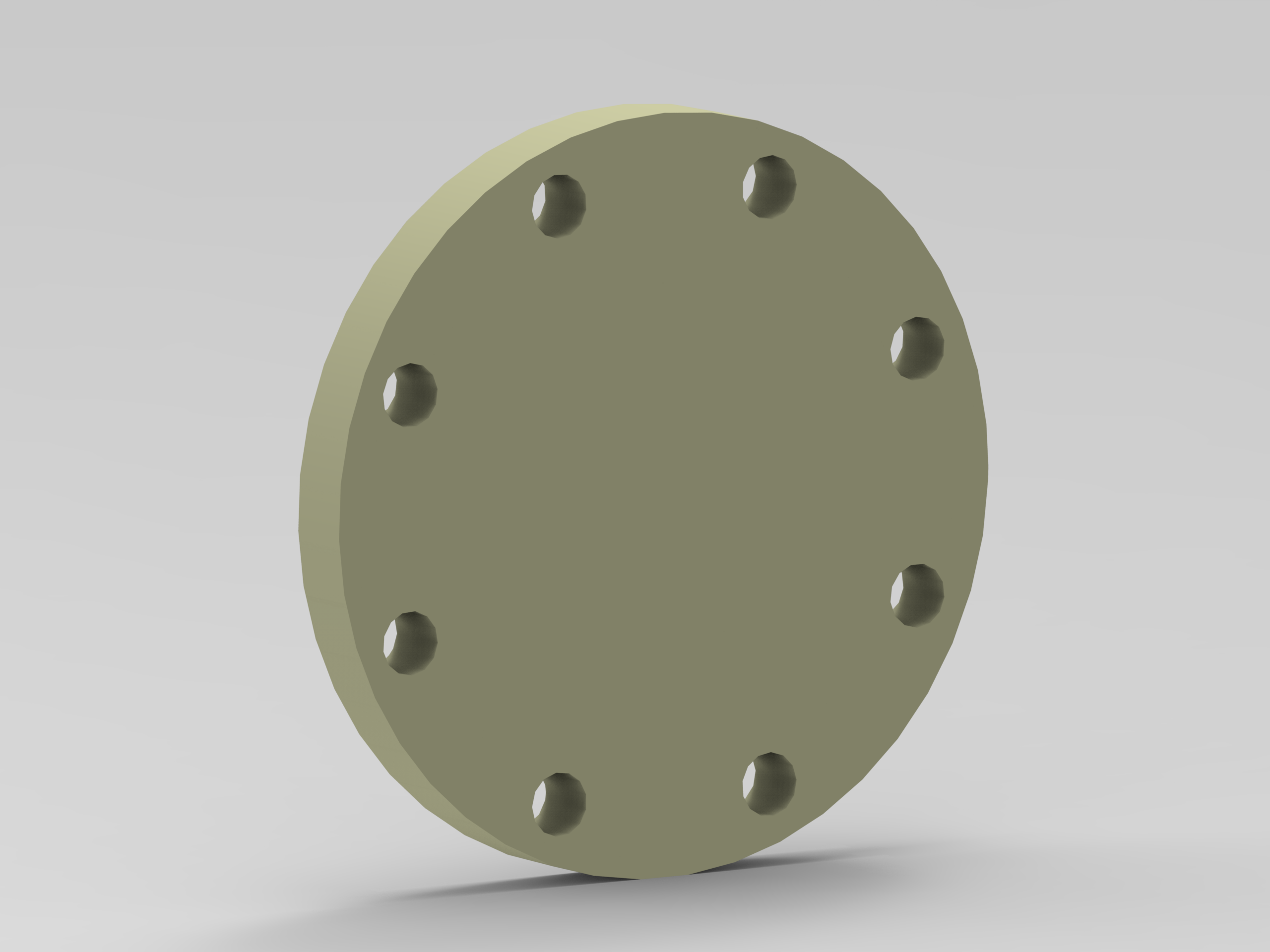

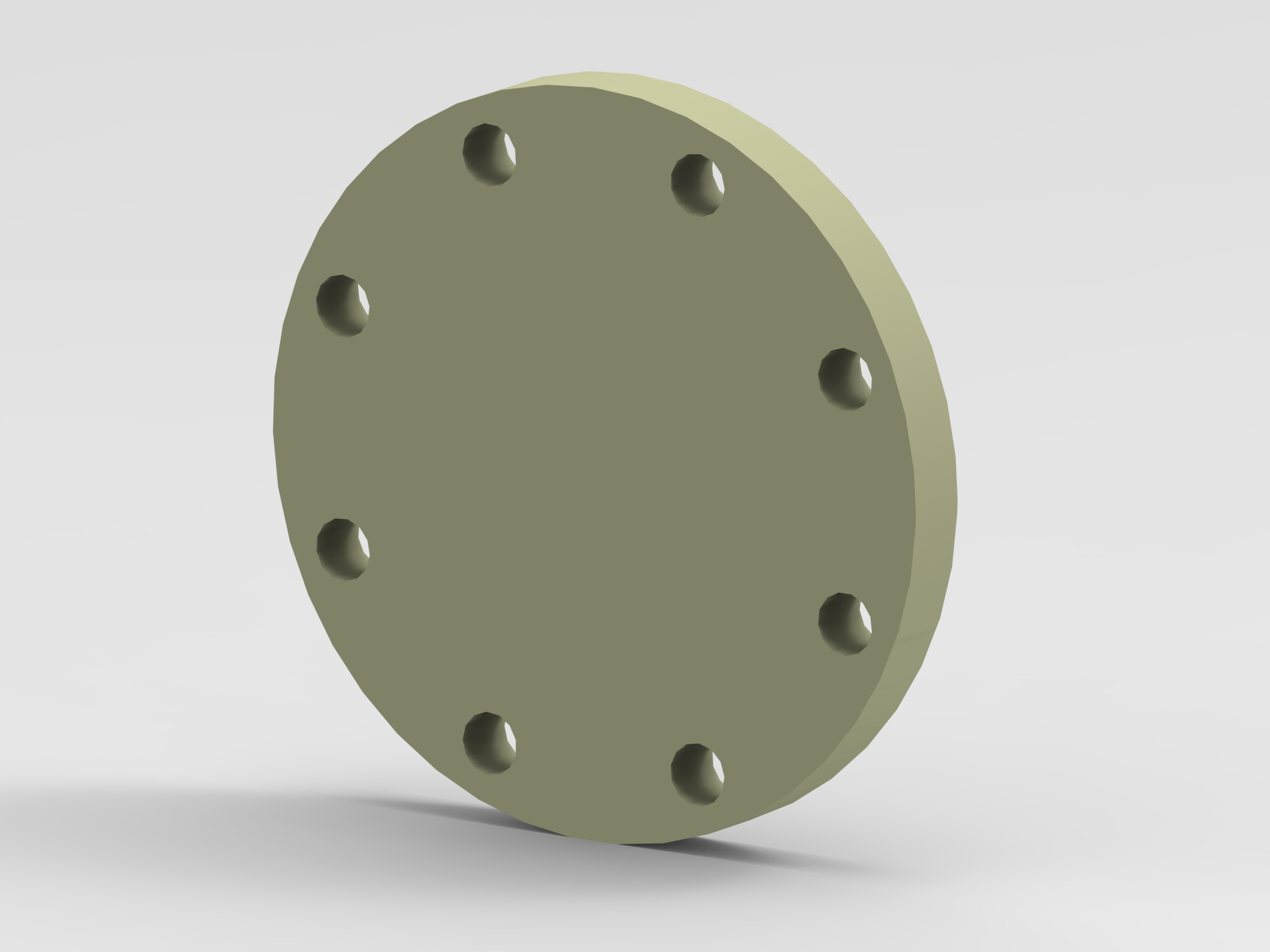

PPH Blind Flange

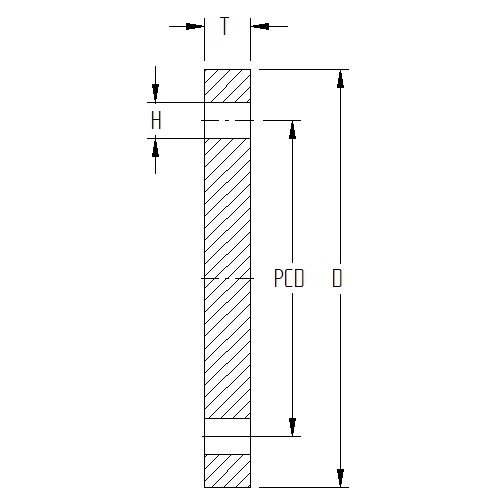

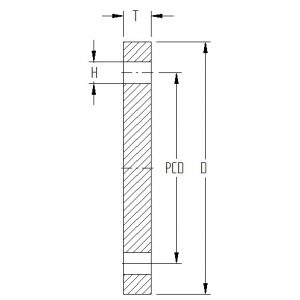

DATA SHEET FOR PPH Blind Flange
SIZE | D
(mm) |
T
(mm) |
PCD | ||||||
INCH | MM | BS 10 table ‘f’ | Asa #150 | ||||||
PCD | Dia
Of Hole |
No.
of Hole |
PCD | Dia
Of Hole |
No.
of Hole |
||||
½” | 20 | 93 | 14 | 67 | 14 | 4 | 60 | 14 | 4 |
¾” | 25 | 105 | 16 | 73 | 14 | 4 | 70 | 14 | 4 |
1” | 32 | 121 | 18 | 87 | 14 | 4 | 79 | 14 | 4 |
1 ¼” | 40 | 131 | 18 | 98 | 14 | 4 | 89 | 14 | 4 |
1 ½” | 50 | 141 | 20 | 105 | 15 | 4 | 98 | 15 | 4 |
2” | 63 | 164 | 20 | 127 | 17 | 4 | 120 | 17 | 4 |
2 ½” | 75 | 183 | 20 | 145 | 17 | 4 | 140 | 17 | 4 |
3” | 90 | 199 | 22 | 165 | 17 | 8 | 152 | 17 | 4 |
4” | 110 | 227 | 22 | 191 | 17 | 8 | 191 | 17 | 8 |
6” | 160 | 303 | 25 | 260 | 18 | 12 | 241 | 18 | 8 |
