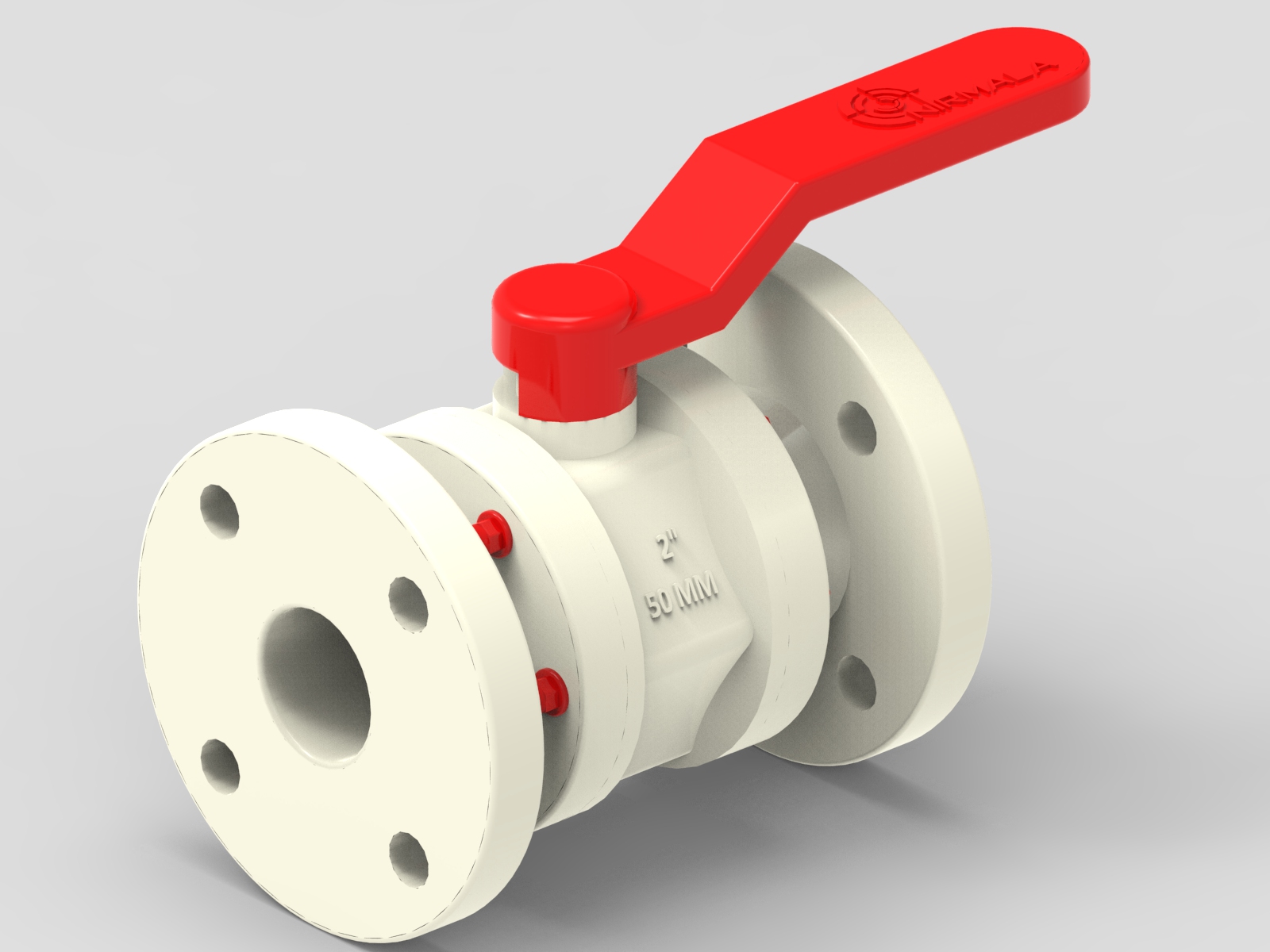

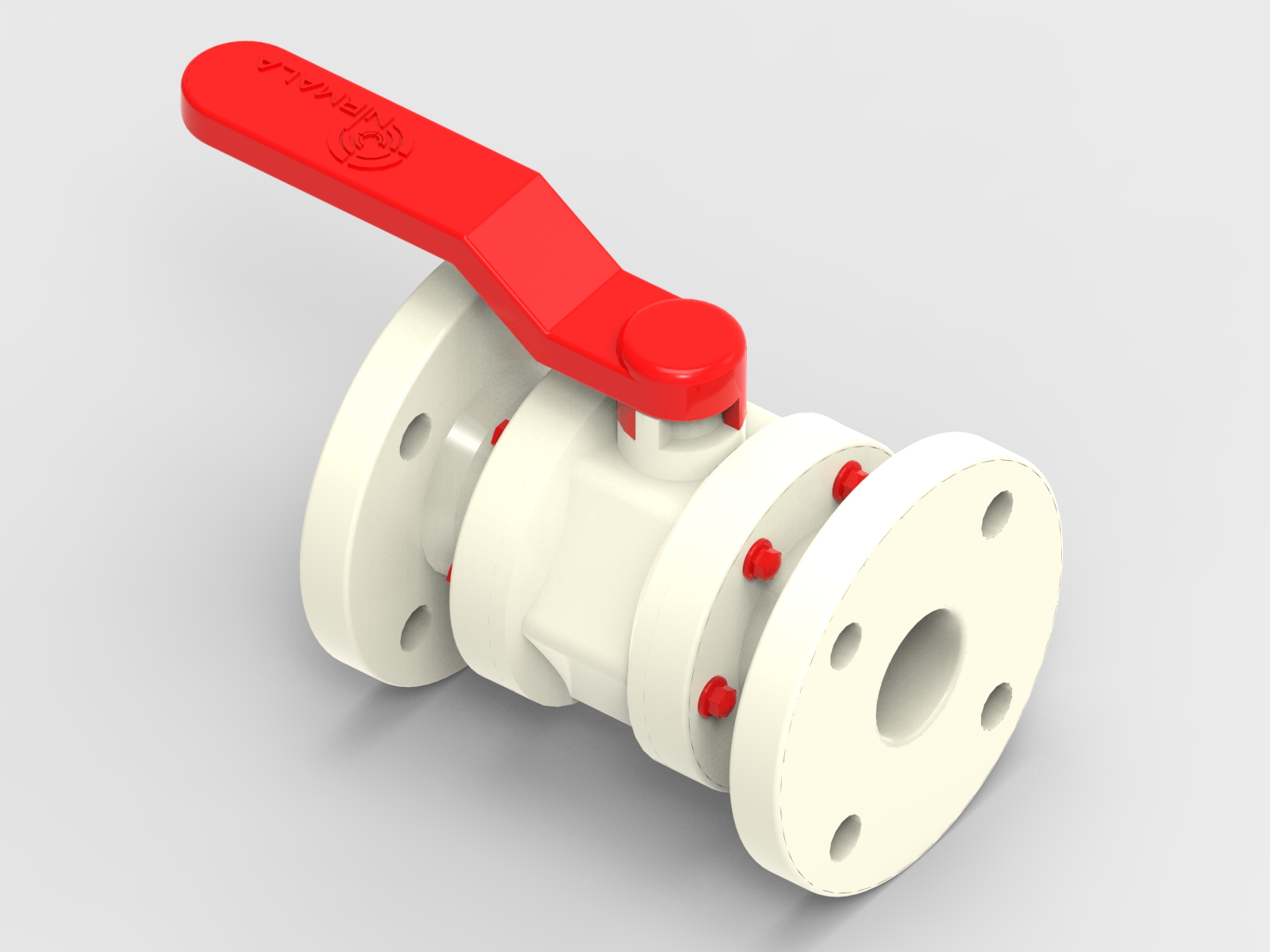

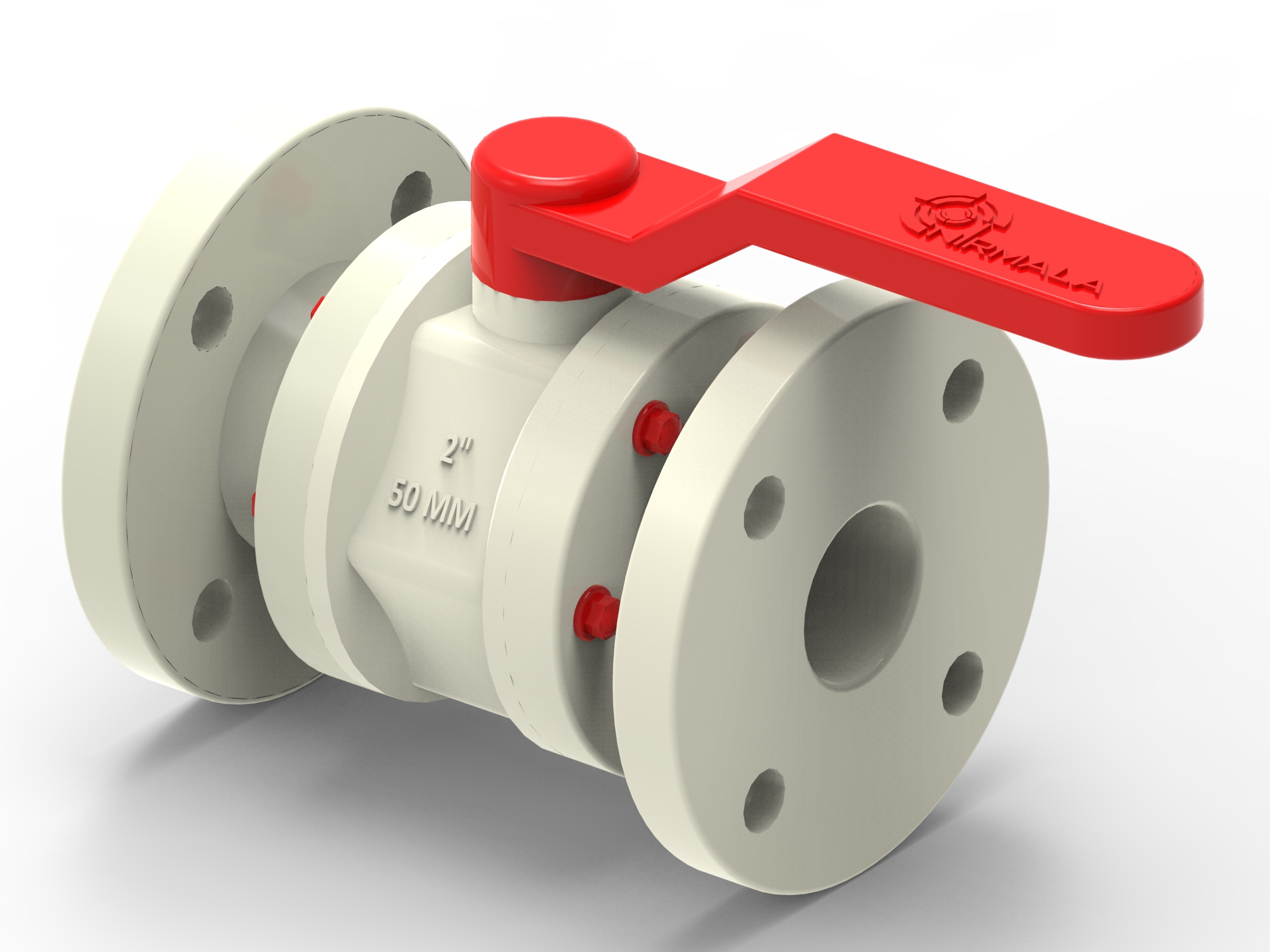

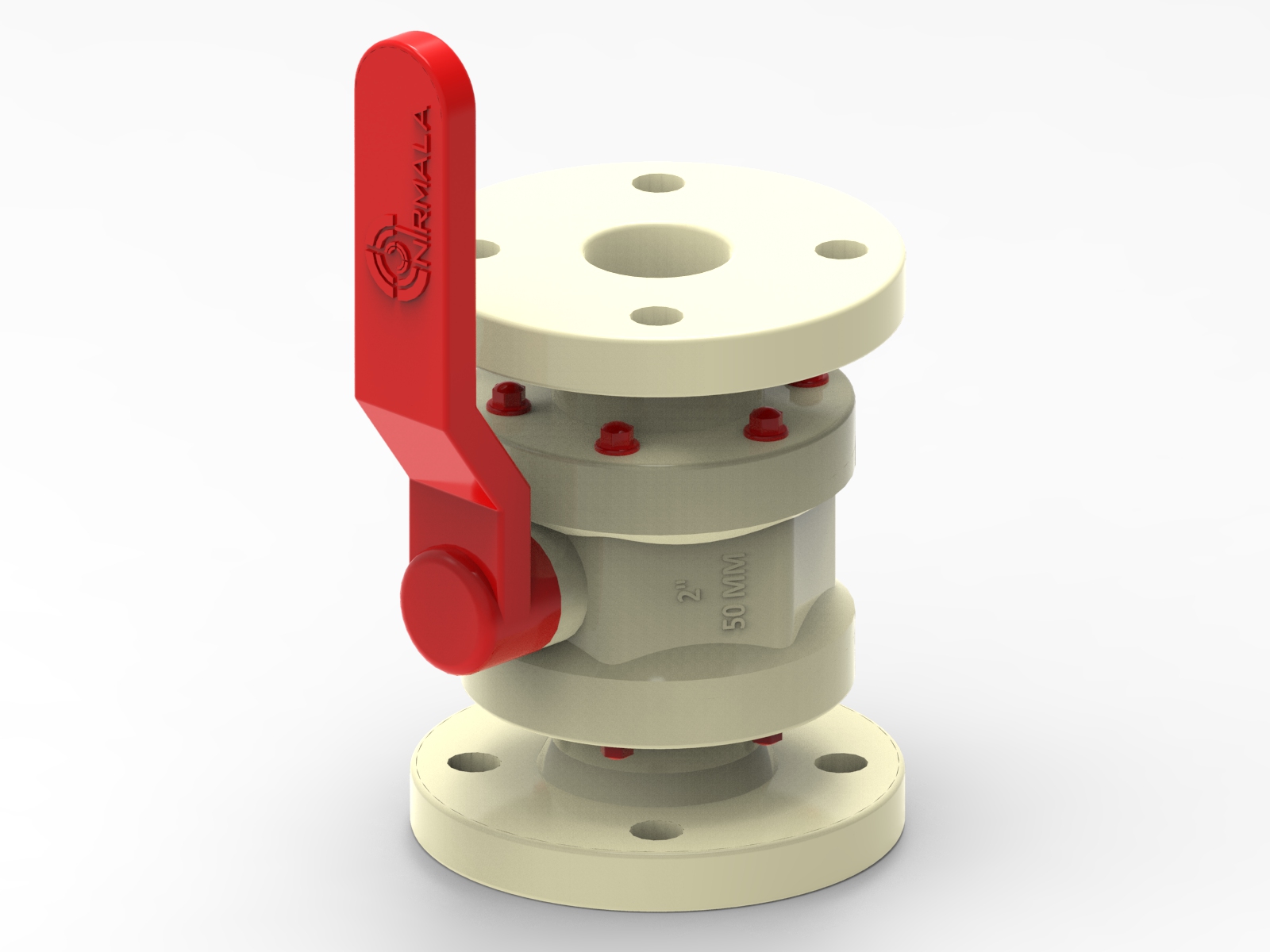

Full PVDF Ball Valve
DATA SHEET FOR Full PVDF Ball Valve
| SR. NO. | PART | MATERIAL | QUANTITY |
| 1 | Body | PVDF | 1 |
| 2 | Ball | PVDF | 1 |
| 3 | Side piece / connector | PVDF | 2 |
| 4 | Stem | SS | 1 |
| 5 | Spindle | PVDF coated | 1 |
| 6 | Seat ring | PTFE | 2 |
| 7 | Connector seal | PTFE | 2 |
| 8 | Stem seal ring | Viton | 1 |
| 9 | Stud, Nut and Washer | SS 316 | Req. |
| 10 | Nut Cap | PP | Req. |
| 11 | Handle | MS PP coated | 1 |
| 12 | Handle hex pin | SS 316 | 1 |
| 13 | Handle Cap | PP | 1 |
- Better resistance to solvents, chemicals andtemperatures.
- Suitable for Bromine, Chlorine and 98% sulfuricacid.
- High abrasionresistance.
| BODY | 15NB TO 65NB | 10 KG/CM2 (140 PSI) |
| 80NB TO 150NB | 8 KG/CM2 (115 PSI) | |
| SEAT | 15NB TO 150NB | 10 KG/CM2 (140 PSI) |
- ASA #150
- F- Table
- Capsule Shape (Universal Drill)
- PVDF-Polyvinylidene Fluoride-1200 C

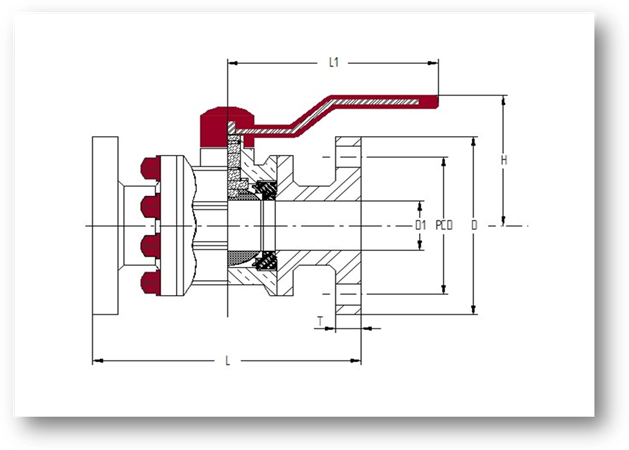

| Size | D | D1 | T | L | L1 | H | PCD | ||||||
| BS 10 table ‘f’ | Asa # 150 | ||||||||||||
| PCD | Dia of Hole | No. of Hole | PCD | Dia of Hole | No. of Hole | ||||||||
| 15NB | ½” | 93 | 15 | 17 | 133 | 84 | 69 | 67 | 14 | 4 | 60 | 14 | 4 |
| 20NB | ¾” | 98 | 21 | 17 | 143 | 84 | 75 | 73 | 14 | 4 | 70 | 14 | 4 |
| 25NB | 1” | 115 | 23 | 18 | 157 | 145 | 84 | 87 | 14 | 4 | 79 | 14 | 4 |
| 40NB | 1 ½” | 145 | 38 | 19 | 171 | 175 | 102 | 105 | 15 | 4 | 98 | 15 | 4 |
| 50NB | 2” | 162 | 49 | 20 | 203 | 205 | 135 | 127 | 17 | 4 | 120 | 17 | 4 |
| 65NB | 2 ½” | 181 | 64 | 22 | 227 | 205 | 135 | 145 | 17 | 4 | 140 | 17 | 4 |
| 80NB | 3” | 205 | 74 | 27 | 265 | 291 | 160 | 165 | 17 | 8 | 152 | 17 | 4 |
| 100NB | 4” | 230 | 95 | 28 | 297 | 291 | 173 | 191 | 17 | 8 | 191 | 17 | 8 |
