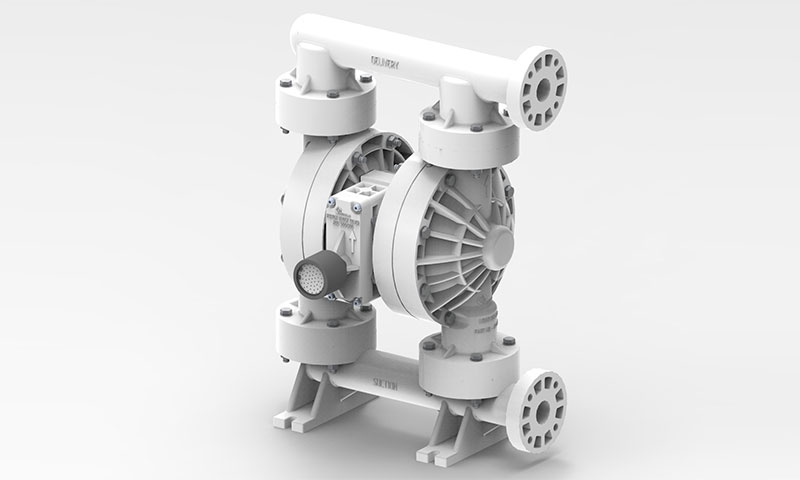

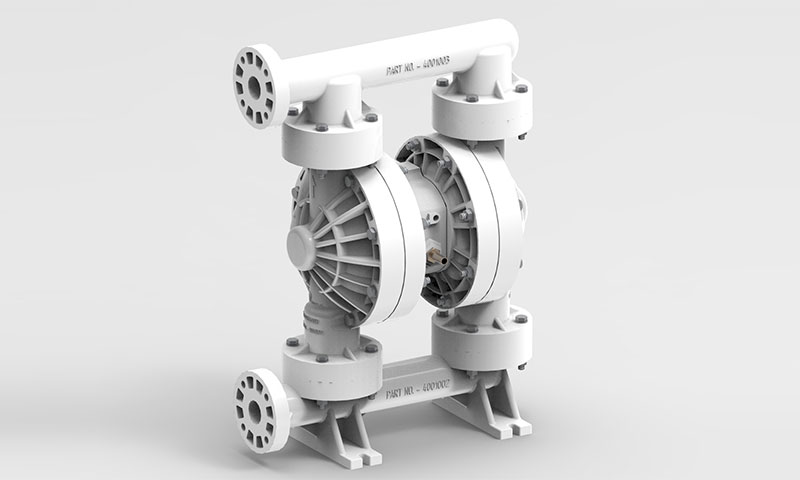

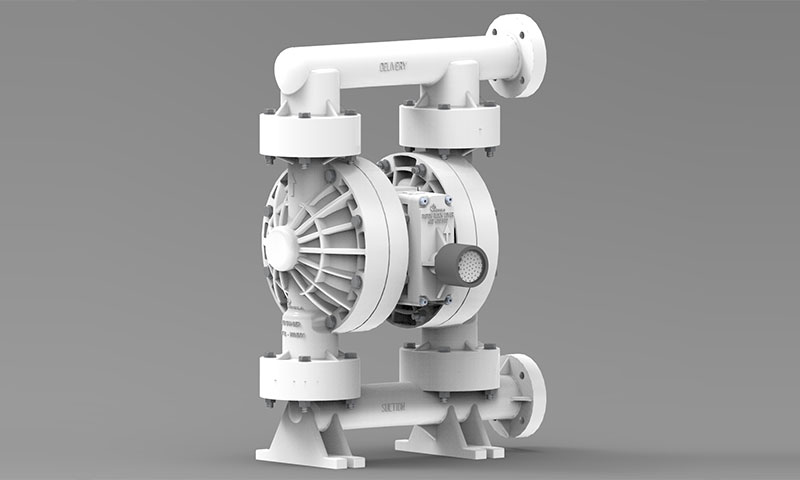

DATA SHEET FOR 400 PP AODD PUMP
| Pump Model | 400 PP AOD |
|---|---|
| Make | “NIRMALA” Make |
| Air Inlet | ½”BSP |
| QUANTITY | 1 |
| Type | Air Operated Diaphragm Pump |
| APPLICATIONS | Acids Transfer , ETP, Filter press |
| Liquid Inlet / Outlet | 1.5” |
| Air Pressure | 8.0 Bar |
| Capacity | 230 LPM |
| Suction Size | 1.5” |
| Discharge Size | 1.5” |
| Connection | Flange End as per ASA-150 |
| Diaphragm | PTFE/ Sentoprene / Neoprene |
| NRV Ball | PTFE / Neoprene |
| Pump Model | 400 PP AOD |
|---|---|
| Wetted Parts | Polypropylene |
| Outer Piston ( Lock Nut ) | Polypropylene |
| Centre Piston ( Holding Plate ) | MS Powder Coated |
| Air Valve Assembly | Polypropylene |
| Diaphragm | PTFE/ Sentoprene / Neoprene |
| Valve Ball | PTFE / Neoprene |
| Valve Seat | Polypropylene |
| O Ring | PTFE / Neoprene |
| Pump Model | 400 PP AOD |
|---|---|
| Suction Lift Dry | 3.05 Mtr (10’) |
| Suction Lift Wet | 6.09 mtr ( 20’) |
| Maximum Flow Rate | 210 LPM |
| Maximum Size Solids | 4.76 mm (1.188”) |
| Maximum Air Pressure | 8 bar |
| Air Inlet | ½” BSP |
| Liquid Inlet | 38.10 mm (1.5”) |
| Liquid Outlet | 38.10 mm (1.5”) |
| Air Pressure KG/CM2 | Head Meter | CFM | Capacity LT/MN | M3/HR |
|---|---|---|---|---|
| 1 | Open | 12 | 101.53 | 6.09 |
| 2 | Open | 15 | 157.14 | 9.43 |
| 10 | 14 | 117.85 | 7.07 | |
| 3 | Open | 18 | 189.00 | 11.31 |
| 10 | 18 | 155.00 | 9.21 | |
| 20 | 18 | 110.00 | 6.60 | |
| 4 | Open | 22 | 200.00 | 12.00 |
| 10 | 21 | 183.50 | 11.00 | |
| 20 | 23 | 137.50 | 8.25 | |
| 30 | 22 | 107.00 | 6.39 | |
| 5 | OPEN | 25 | 228.00 | 13.65 |
| 10 | 24 | 206.25 | 12.38 | |
| 20 | 23 | 165.00 | 9.90 | |
| 30 | 23 | 136.00 | 8.08 | |
| 40 | 23 | 92.00 | 5.50 |
| Pump Model | 400-PP-AODD |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
