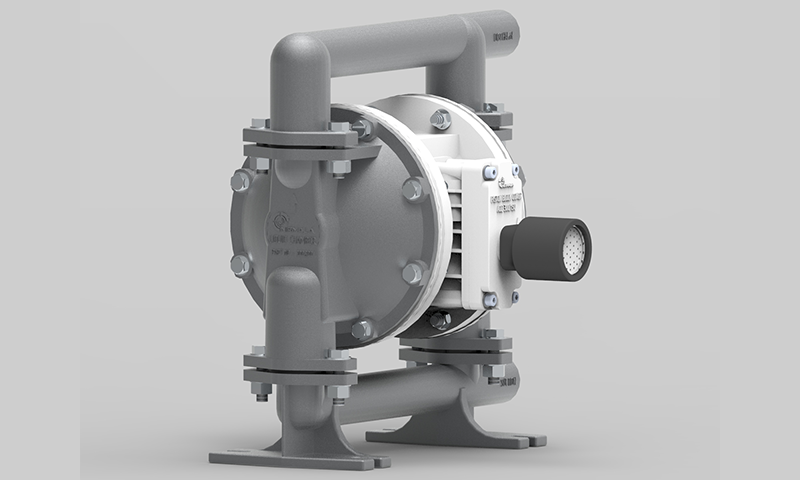

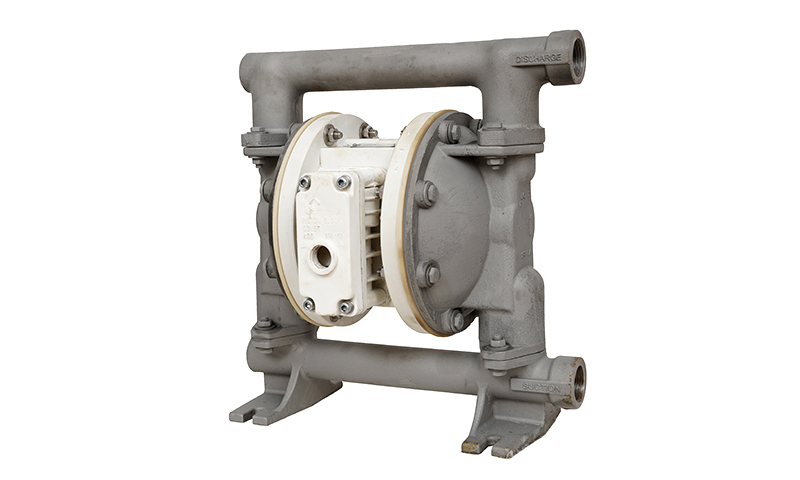

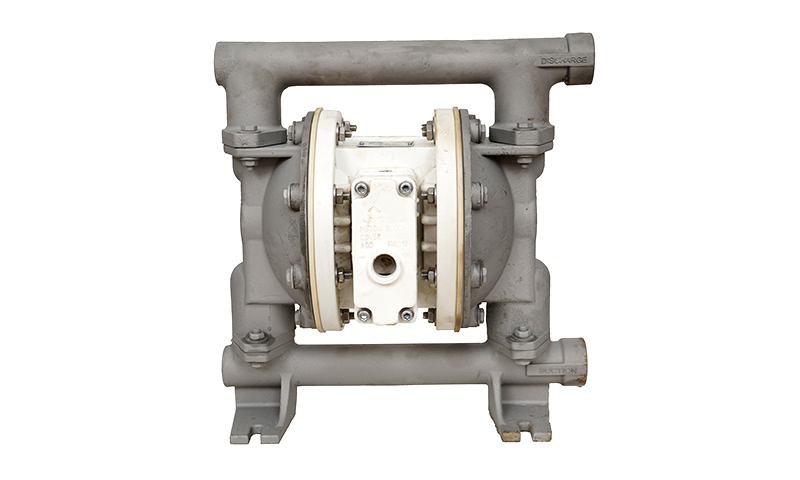

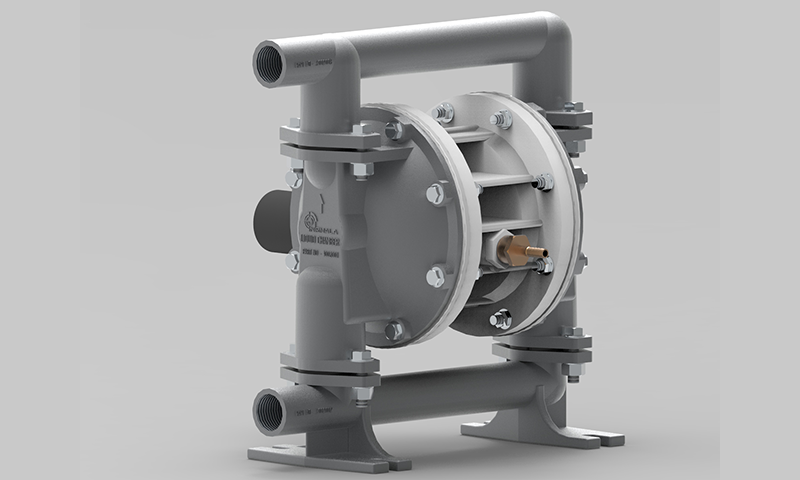

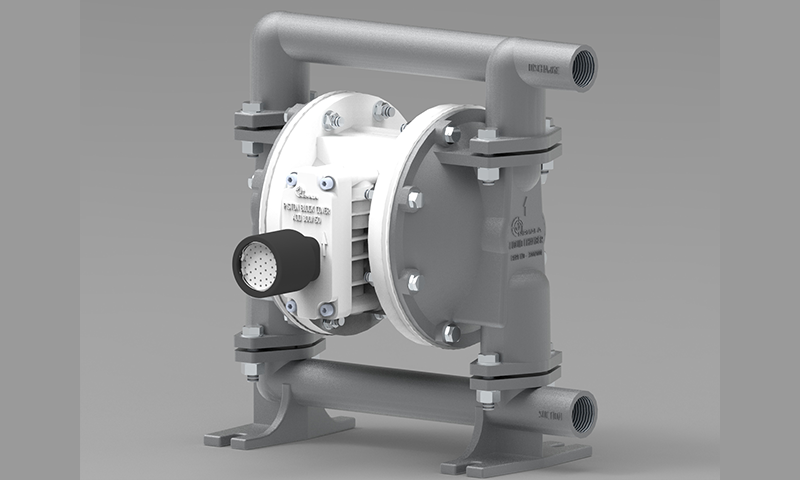

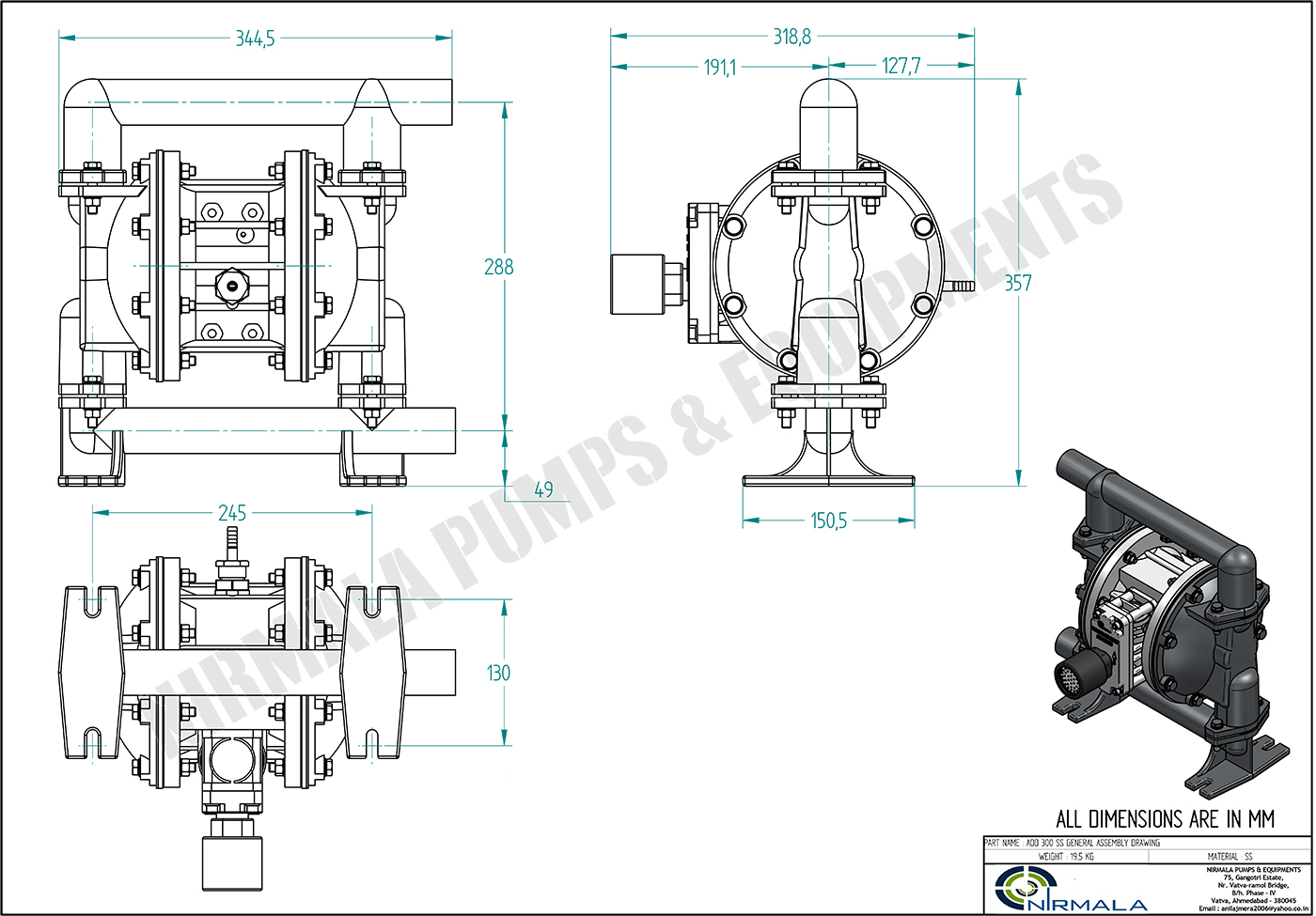

DATA SHEET FOR 300 SS AODD PUMP
| Pump Model | 300 SS AOD |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Solvents, Mix Aqueous, Barrel Loading – Unloading Transfer Application |
| Air Pressure | 8-8.6 bar |
| Max. Capacity | 105 LPM |
| Air Inlet | 3/8” |
| Liquid Inlet / Outlet | 1” |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | 1” |
| Discharge Size | 1” |
| Connections | BSP Threaded |
| Diaphragm | PTFE Diaphragm |
| NRV Ball | PTFE Ball |
| Pump Weight | 19.5 Kg |
| Pump Model | 300 SS AOD |
|---|---|
| Wetted Parts | SS 316 |
| Outer Piston | SS 316 |
| Center Piston | MS Powder Coated |
| Air Valve Assembly(Non Wetted) | Polypropylene / Aluminium |
| Diaphragm | PTFE Diaphragm With Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat (Check Valve) | SS 316 |
| O Ring | PTFE |
| Pump Model | 300 SS AOD |
|---|---|
| Suction Lift Dry | 3.05 mtrs (10’) |
| Suction Lift Wet | 4.89 mtrs (16’) |
| Maximum Flow Rate | 105 LPM |
| Maximum Size Solids | 3.17 mm (0.125”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 9.53mm ( 3/8”) |
| Liquid Inlet | 25.40 mm (1”) |
| Liquid Outlet | 25.40 mm (1”) |
| Air Pressure KG/CM2 | Head Meter | CFM | Capacity LT/MN | M3/HR |
|---|---|---|---|---|
| 2 | Open | 8 | 55 | 3.30 |
| 10 | 8.5 | 34 | 2.04 | |
| 3 | OPEN | 15 | 71 | 4.26 |
| 10 | 14 | 50 | 3.00 | |
| 20 | 18 | 38 | 2.28 | |
| 4 | OPEN | 14 | 86 | 5.16 |
| 10 | 17 | 66 | 3.96 | |
| 20 | 25 | 54 | 3.30 | |
| 30 | 23 | 47 | 2.58 | |
| 5 | OPEN | 17 | 105 | 6.06 |
| 10 | 15 | 89 | 5.34 | |
| 20 | 19 | 71 | 4.26 | |
| 40 | 23 | 44 | 2.64 | |
| 30 | 20 | 59 | 3.54 |
| Pump Model | 300-SS-AODD |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
