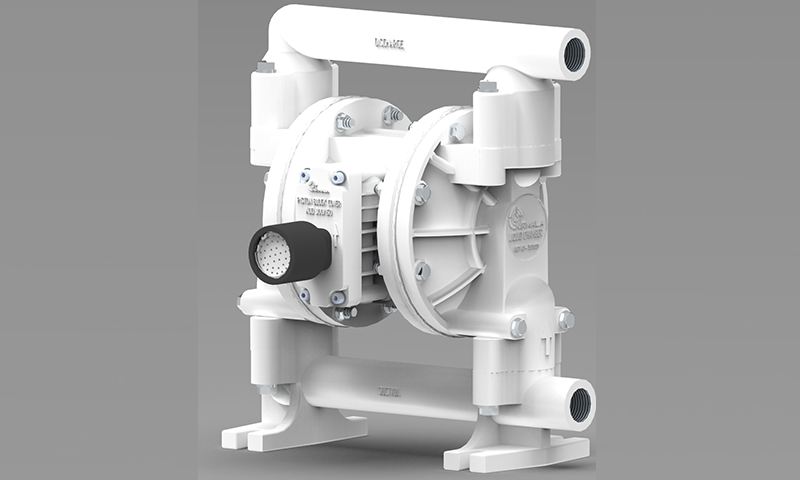

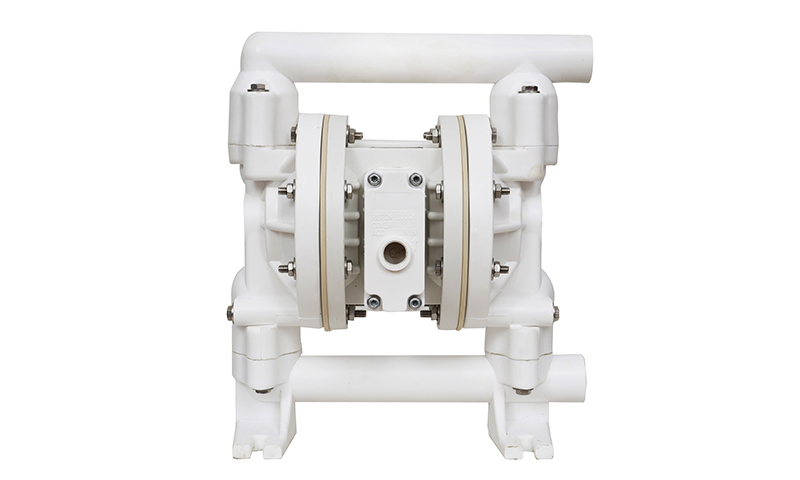

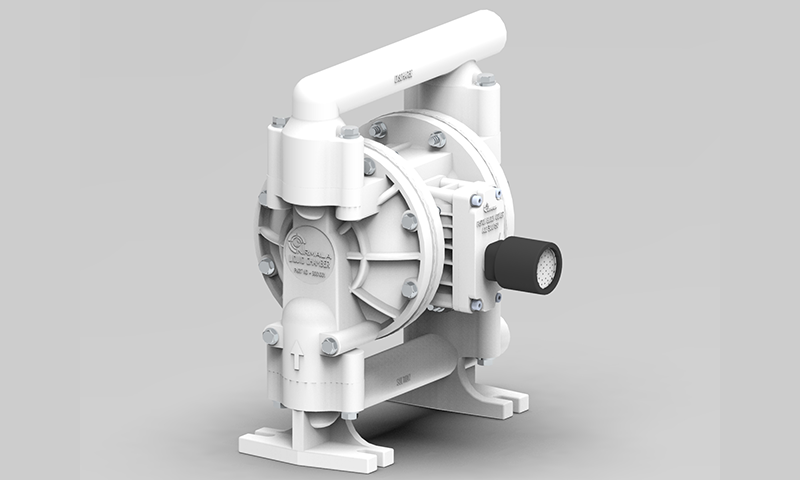

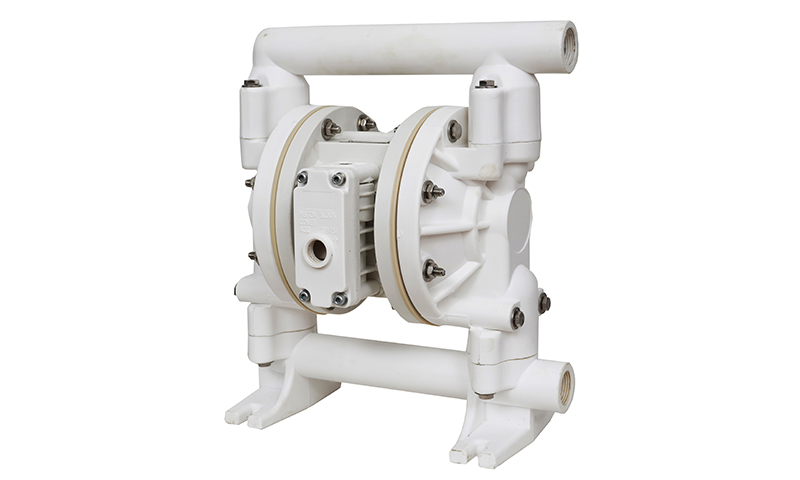

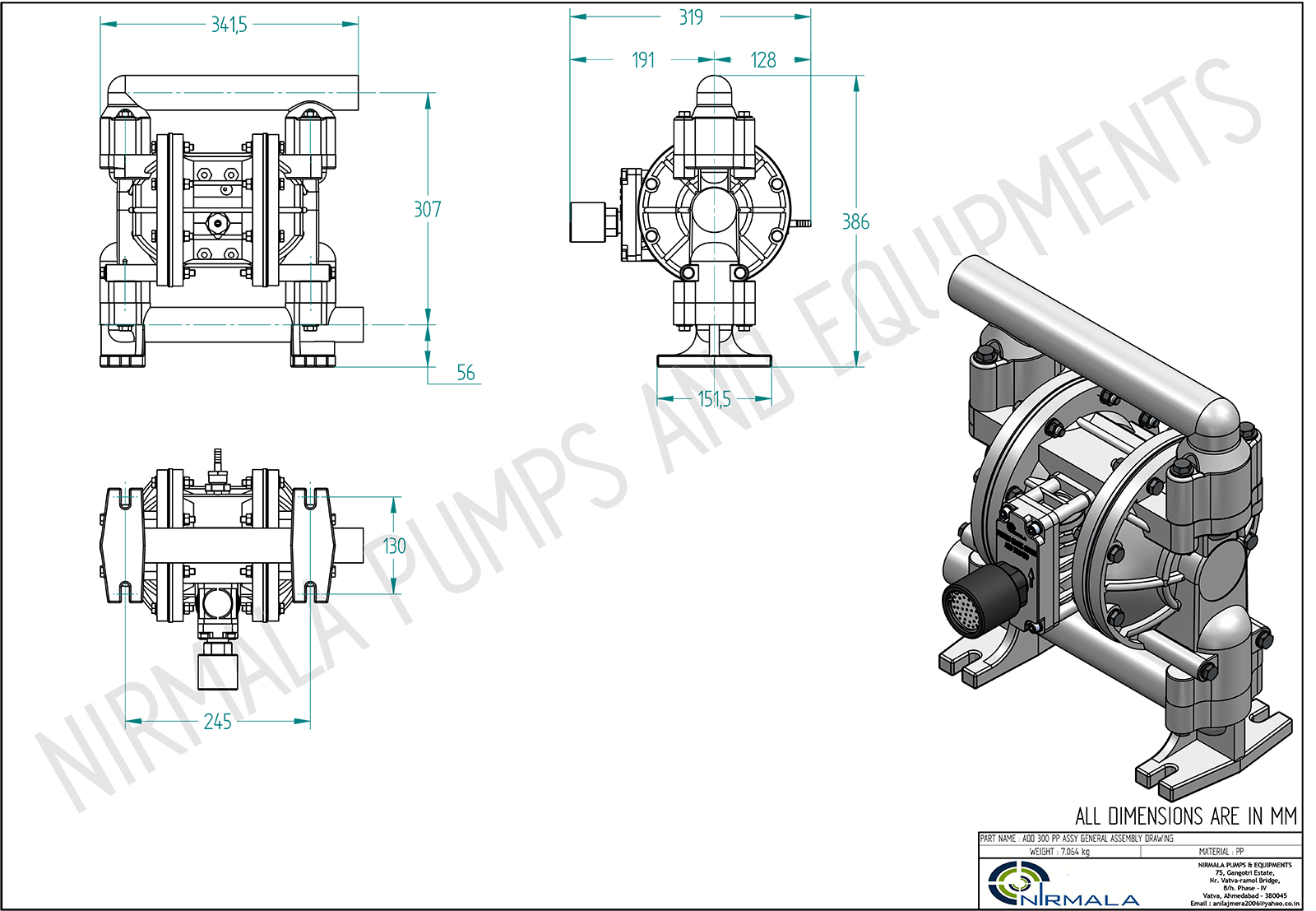

DATA SHEET FOR 300 PP AODD PUMP
| Pump Model | 300 PP AOD |
|---|---|
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Air Pressure | 8-8.6 bar |
| Max. Capacity | 105 LPM |
| APPLICATIONS | Acids , Barrel Loading – Unloading Application |
| Liquid Inlet / Outlet | 1” |
| Air Inlet | 3/8” |
| QUANTITY | 1 |
| Suction Size | 1” |
| Discharge Size (mm) | 1” |
| Connections | BSP Threaded/ Flange ASA-150 standard |
| Diaphragm | PTFE Diaphragm |
| NRV Ball | Teflon Ball |
| Pump Weight | 7.2 Kg |
| Pump Model | 300 PP AOD |
|---|---|
| Wetted Parts | Polypropylene |
| Outer Piston | Polypropylene |
| Centre Piston | MS Powder Coated |
| Air Valve(Non-Wetted Parts) | Polypropylene |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | PTFE |
| Valve Seat | Polypropylene |
| O Ring | PTFE/Neoprene |
| Pump Model | 300 PP AOD |
|---|---|
| Suction Lift Dry | 3.05 mtr (10’) |
| Suction Lift Wet | 4.89 mtr (16’) |
| Maximum Flow Rate | 105 LPM |
| Maximum Size Solids | 3.17 mm (0.125”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | 9.53mm ( 3/8”) |
| Liquid Inlet | 25.40 mm (1”) |
| Liquid Outlet | 25.40 mm (1”) |
| Air Pressure KG/CM2 | Head Meter | CFM | Capacity LT/MN | M3/HR |
|---|---|---|---|---|
| 2 | Open | 13 | 79 | 4.6 |
| 10 | 12 | 59 | 3.5 | |
| 3 | Open | 16 | 90 | 5.5 |
| 10 | 15 | 75 | 4.28 | |
| 20 | 14 | 47 | 1.20 | |
| 4 | Open | 19 | 103 | 6.40 |
| 10 | 18 | 88 | 5.20 | |
| 20 | 17 | 62 | 3.75 | |
| 30 | 16.5 | 37 | 2.10 | |
| 5 | Open | 21 | 104 | 6.90 |
| 10 | 21 | 97 | 5.80 | |
| 20 | 19 | 70 | 4.30 | |
| 30 | 18 | 54 | 3.10 | |
| 40 | 17 | 29 | 1.65 |
| Pump Model | 300-PP-AODD |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
