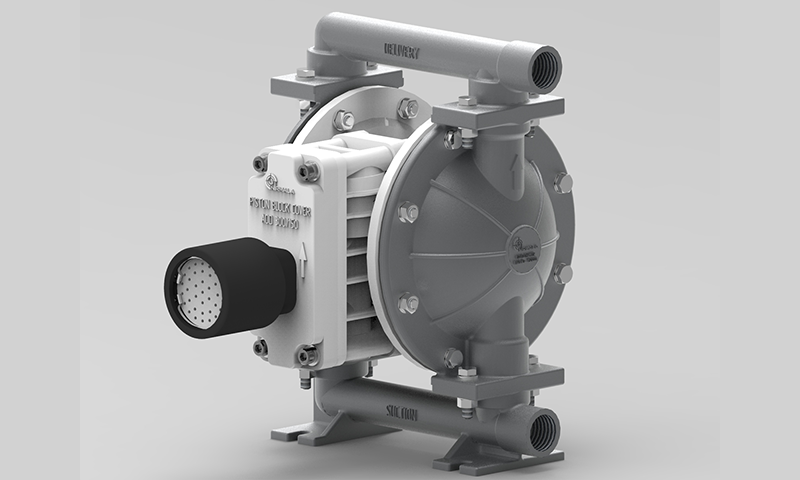

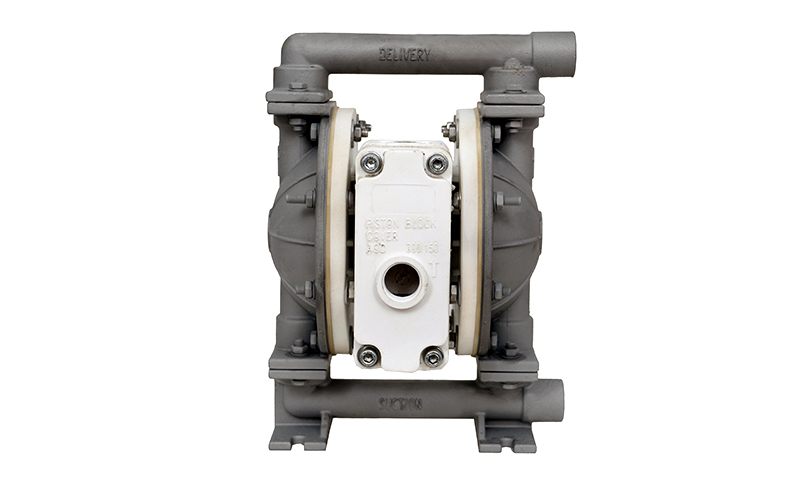

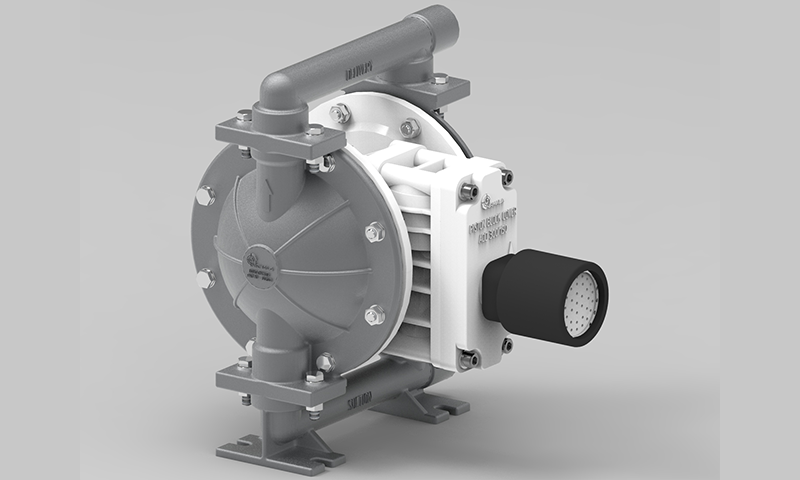

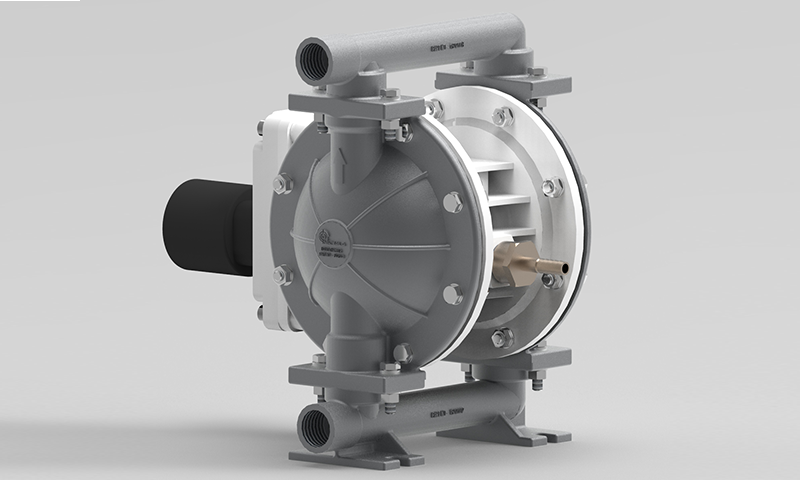

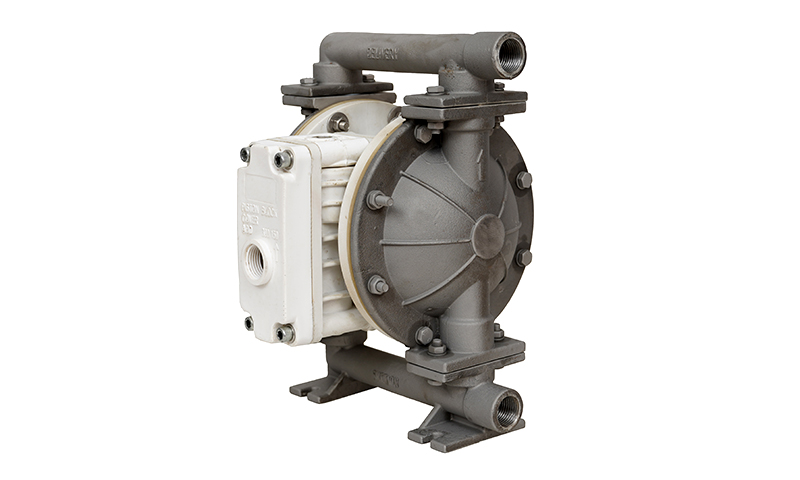

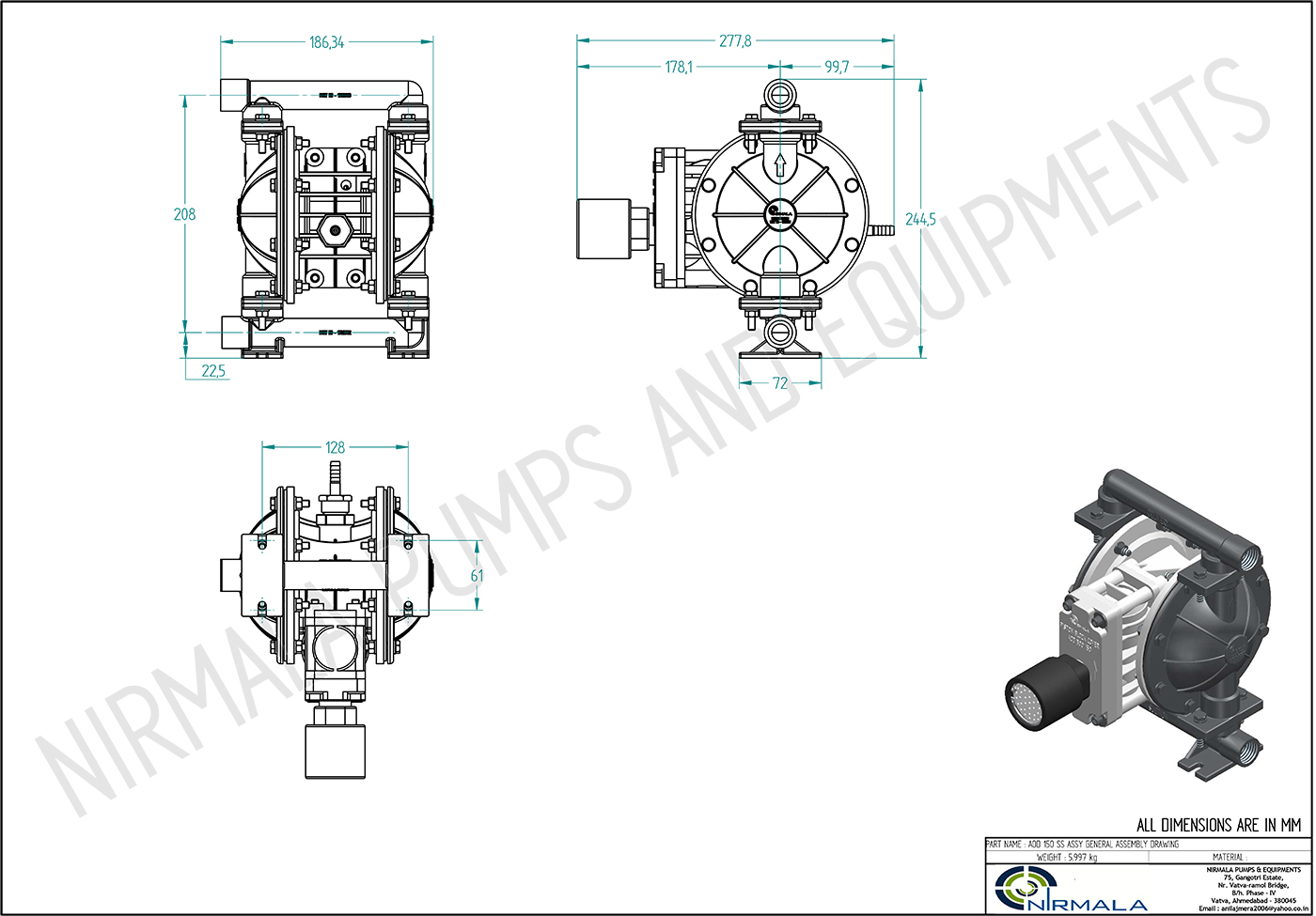

DATA SHEET FOR 150 SS AODD PUMP
| Pump Model | 150 SS AOD |
|---|---|
| QUANTITY | 1 |
| APPLICATIONS | Solvents , Active Pharmaceuticals Integrates Industries |
| Max. Capacity | 35 LPM |
| Air Pressure | 8.6 bar |
| Air Inlet | ¼” (6.35mm) |
| Liquid Inlet / Outlet | ½” (12.70 mm) |
| Make | “NIRMALA” Make |
| Type | Air Operated Diaphragm Pump |
| Suction Size | ½” |
| Discharge Size | ½” |
| Connections | BSP Threaded |
| Diaphragm | Teflon Diaphragm |
| NRV Ball | Teflon Ball |
| Pump Model | 150 SS AOD |
|---|---|
| Wetted Parts | SS 316 |
| Outer Piston | SS 316 |
| Centre Piston | MS Powder Coated |
| Air Valve Assembly(Non Wetted) | Polypropylene |
| Diaphragm | PTFE Diaphragm with Sentoprene Backup |
| Valve Ball | Teflon |
| Valve Seat | SS 316 |
| O Ring | PTFE |
| Pump Model | 150 SS AOD |
|---|---|
| Suction Lift Dry | 1.45 mtr (4.75’) |
| Suction Lift Wet | 2.83 mtr (9.28’) |
| Maximum Flow Rate | 30 lpm |
| Maximum Size Solids | 2 mm (0.078”) |
| Maximum Air Pressure | 8.06 bar |
| Air Inlet | ¼” |
| Inlet | 12.70 mm (1/2” BSP) |
| Outlet | 12.70 mm (1/2” BSP) |
| Air Pressure KG/CM2 | Head Meter | CFM | Capacity LT/MN | M3/HR |
|---|---|---|---|---|
| 2 | Open | 8 | 30 | 1.80 |
| 10 | 8.5 | 29 | 1.75 | |
| 3 | OPEN | 15 | 33 | 1.98 |
| 10 | 14 | 30 | 1.80 | |
| 20 | 18 | 24 | 1.44 | |
| 4 | OPEN | 14 | 34 | 2.00 |
| 10 | 17 | 25 | 1.50 | |
| 20 | 25 | 22 | 1.32 | |
| 30 | 23 | 19 | 1.14 | |
| 6 | OPEN | 17 | 35 | 2.10 |
| 10 | 17 | 33 | 1.98 | |
| 20 | 19 | 30 | 1.80 | |
| 30 | 20 | 23 | 1.40 | |
| 40 | 23 | 20 | 1.25 |
| Pump Model | 150-SS-AODD |
|---|---|
| P.P | 0˚ C – 80 ˚ C |
| PVDF | -12˚C – 110˚C |
| Neoprene | -17˚C – 110˚C |
| Viton | -40˚C – 176˚C |
| Teflon | 4.4˚C – 220˚C |
